ASTM D2247

Standard Practice for Testing Water Resistance of Coatings in 100 % Relative Humidity

ASTM D2247 is also known as Standard Practice For Testing Water Resistance Of Coatings In 100 % Relative Humidity. Micom Laboratories offer ASTM D2247 testing services as part of our coating testing and corrosion test services.

This practice evaluates the coating water resistance by exposing coated test specimens in an atmosphere maintained at 100% relative humidity.  This condition will enable condensation to form on test specimens. This practice is closely related to ASTM D1735. Although the cabinet used for this test is different. In addition, the condensing fog is generated using a different technique using the same cabinet as for another test: the ASTM G154 test.

ASTM D2247 Testing Conditions

Test specimens are placed in an enclosed cabinet containing a heated, saturated mixture of air and water vapor. The temperature of the chamber is maintained at 38°C (100°F). At 100% relative humidity (RH), a very small temperature difference between the specimen and the surrounding vapor causes the formation of condensation on the specimens. The exposure condition is varied by selecting the duration of the test. Water permeates the coating at rates that are dependent upon the characteristics of the coating.

Water can cause the degradation of coatings, so knowledge of how a coating resists to water is helpful in predicting its service life. Failure in tests at 100% relative humidity may be caused by a number of factors including a deficiency in the coating itself, contamination of the substrate, or inadequate surface preparation. It is important to note that the ASTM D2247 should not be considered an accelerated aging test since the test conditions are relatively mild.

ASTM D2247 Water Resistance Testing

Fig.1 Water blistering under paint following exposure according to ASTM d2247

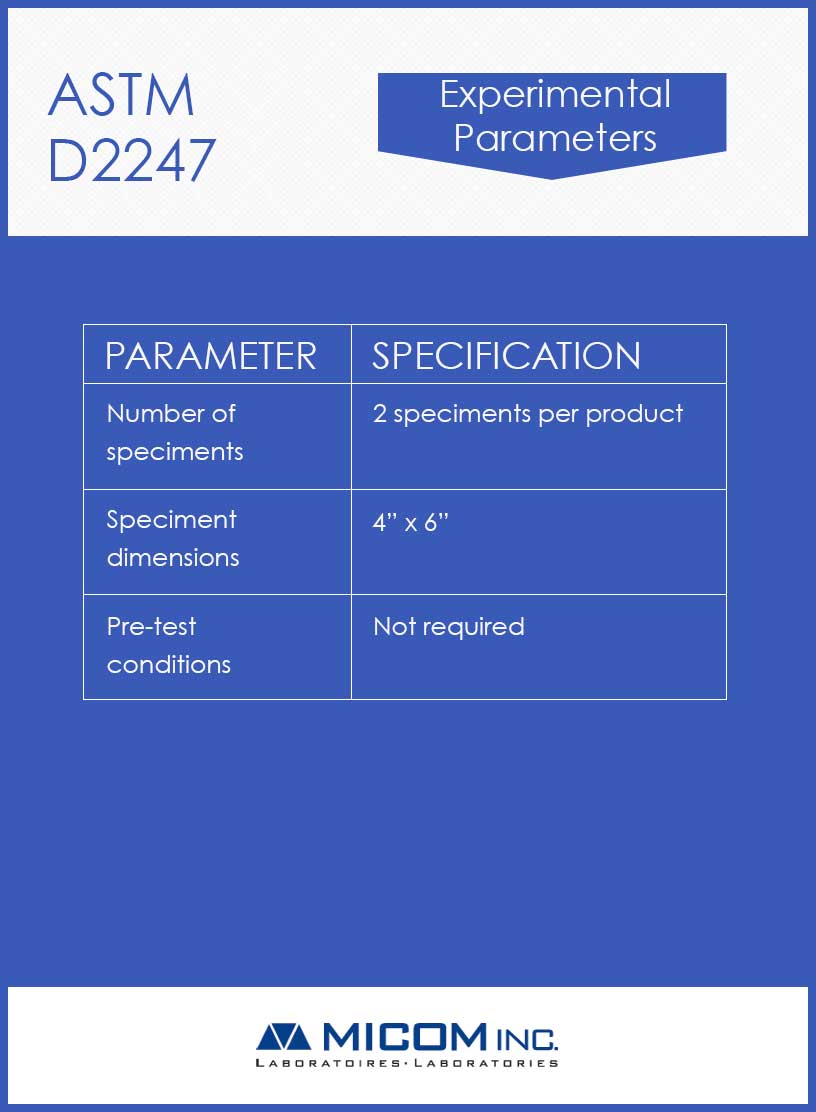

Typical Experimental Parameters for ASTM D2247

  • Number of specimens: 2 specimens per product
  • Specimen dimensions: 4″ x 6″
  • Pre-test conditions: Not required
